Magnetic Hooks

Category: .

Product Description

Magnetic Hooks

Hooks with strong magnets inside provide a great solution for hanging objects from various surfaces. Metal walls, refrigerators, filing cabinets, etc.

Item No.OD (mm)Thickness (mm)HEIGHT (mm)Pull lbs
XLJ-23011515.2339
XLJ-230220153318
XLJ-23032515.23336
XLJ-23043015.532.561
XLJ-231028.55.2——35
XLJ-231128.55.2——35
XLJ-2312387——65

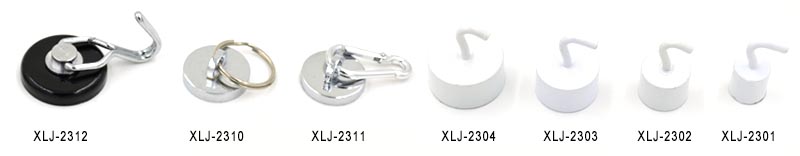

Magnetic hooks

Item No.TallWideDeepMaterialPull lbs
XLJ-2351-B34.32419NdFeB, Grade N35, Plastic5
XLJ-2351-R34.32419NdFeB, Grade N35, Plastic5

XLJ-2351

Item No.Length (mm)Width (mm)Thickness (mm)Pull lbs
XLJ-235285501515

XLJ-23521

Item No.OD(mm)HEIGHT(mm)Hook AttachmentPlating/CoatingPull lbs
XLJ-231315.938.1#4-40 Threaded Open HookNi-Cu-Ni (Nickel)15
XLJ-231419.147.6#6-32 Threaded Open HookNi-Cu-Ni (Nickel)22
XLJ-231525.456.3#8-32 Threaded Open HookNi-Cu-Ni (Nickel)40
XLJ-231631.861#10-32 Threaded Open HookNi-Cu-Ni (Nickel)61
XLJ-231738.160.3#10-32 Threaded Open HookNi-Cu-Ni (Nickel)95
XLJ-231844.576.21/4"-20 Threaded Open HookNi-Cu-Ni (Nickel)125
XLJ-23191635M4 Coarse threaded hookNi-Cu-Ni (Nickel)12
XLJ-23202037M4 Coarse threaded hookNi-Cu-Ni (Nickel)28
XLJ-23212543M5 Coarse threaded hookNi-Cu-Ni (Nickel)48
XLJ-23223247M6 Coarse threaded hookNi-Cu-Ni (Nickel)75
XLJ-23233646M6 Coarse threaded hookNi-Cu-Ni (Nickel)90
XLJ-23244252M6 Coarse threaded hookNi-Cu-Ni (Nickel)149

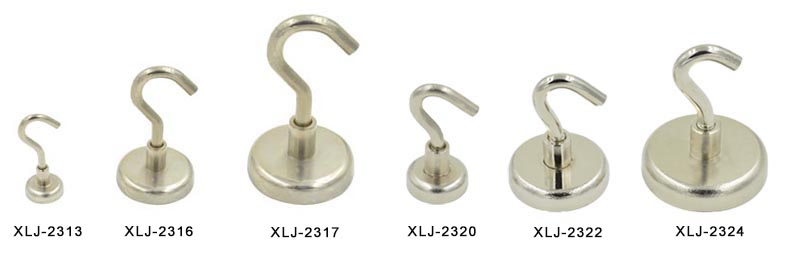

Magnetic-hooks-1

Item No.OD(mm)HEIGHT(mm)Hook AttachmentPlating/CoatingPull lbs
XLJ-232515.938.1#4-40 Threaded Eye HookNi-Cu-Ni (Nickel)15
XLJ-232619.143.2#6-32 Threaded Eye HookNi-Cu-Ni (Nickel)22
XLJ-232725.450.8#6-32 Threaded Eye HookNi-Cu-Ni (Nickel)40
XLJ-232831.857.2#10-32 Threaded Eye HookNi-Cu-Ni (Nickel)61
XLJ-232938.157.2#10-32 Threaded Eye HookNi-Cu-Ni (Nickel)95
XLJ-233044.571.11/4"-20 Threaded Eye HookNi-Cu-Ni (Nickel)125
XLJ-233112.712.7——Ni-Cu-Ni (Nickel)10
XLJ-233215.915.9——Ni-Cu-Ni (Nickel)15

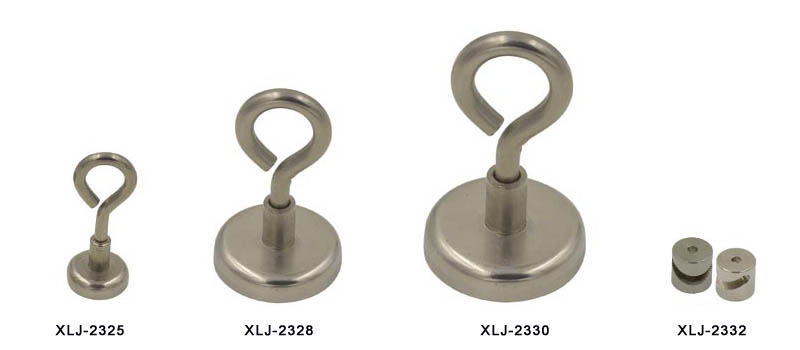

Eye-Hook

Item No.OD (mm)Thickness (mm)HEIGHT (mm)Plating/CoatingPull lbs
XLJ-237125
8.235white coated9
XLJ-2372
32
8
36
white coated
14
XLJ-2373
32
7.5
15.8
white coated
14
XLJ-2374
36
7.7
36
white coated
18
XLJ-2375
47
8
34
white coated
26
XLJ-2376
51.7
8
33.5
white coated
25
XLJ-2377
60
9
34.5
white coated
45
XLJ-2378
67
9.6
37.5
white coated
55
XLJ-2381
51.7
8
32
chrome plated
20
XLJ-2382
67
10.5
19.8
chrome plated
35
XLJ-2383
81
11
71.5
chrome plated
95

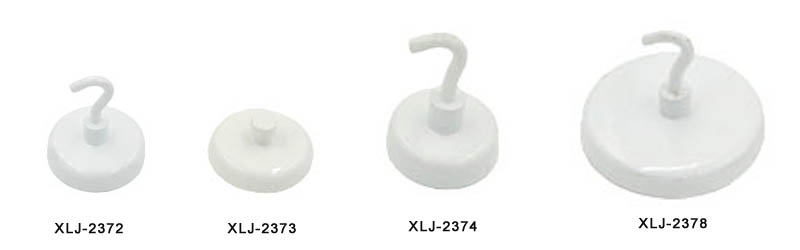

Magnetic hook-1

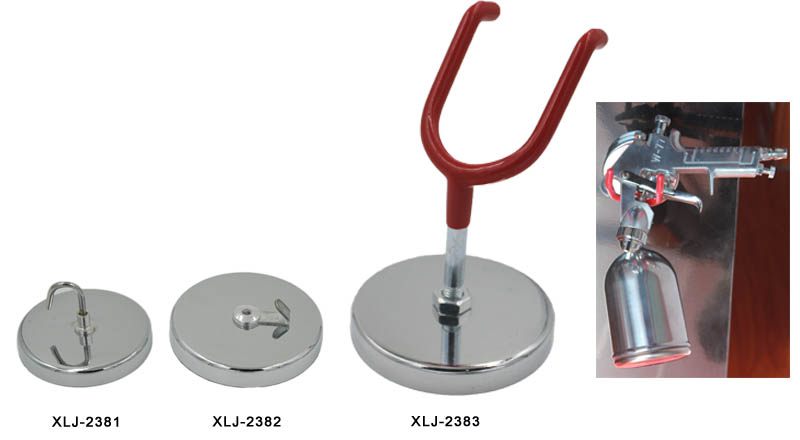

Magnetic Hook-2

Item No.
Length (mm)
Width (mm)
Thickness (mm)
Height (mm)
Pull lbs
XLJ-2380
34
26
13
23
4

XLJ-2380
